SHOWCASE

Every family draws four ways:

  • flat — the rule in 2D: the pattern before a third axis exists
  • iso — the whole 3D sponge, seen corner-on (the fancy word is isometric)
  • pro — the three faces the sponge shows you
  • cut — the diagonal slice through the middle

and each view animates the four families, one frame each, labeled in the corner:

  • carpet — keep a cell when at most one axis is odd (the sponges above)
  • net — keep when all axes are odd, or all but one
  • tree — pick one axis to run free; keep when every other axis is even
  • void — keep when every axis has the same parity

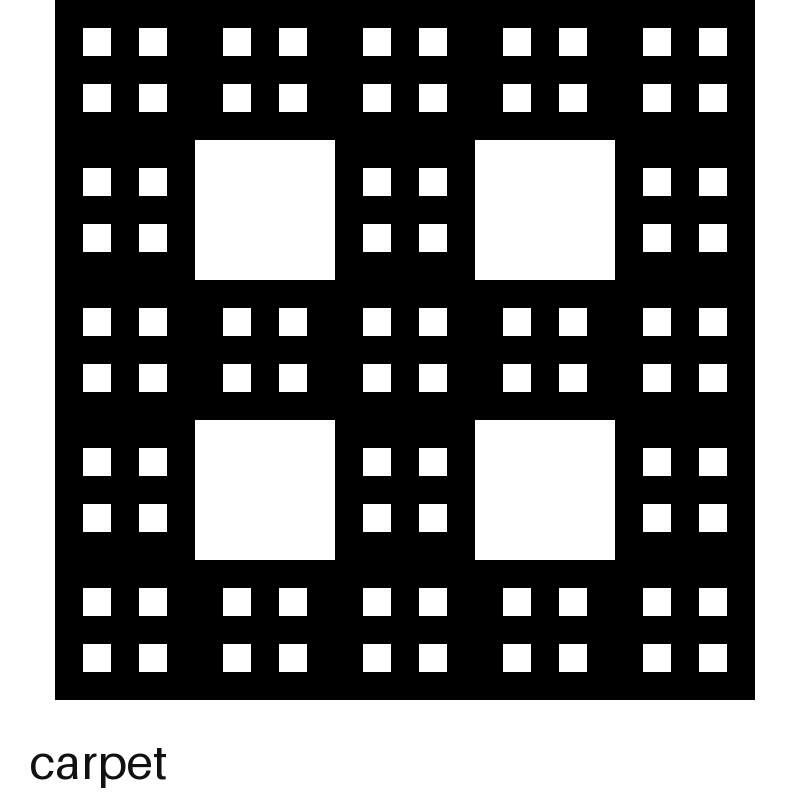

All at level 2 — the three sponge views tiled in rings around the center, the flat view left bare. Views down the side, numbers across the top. Read a column top to bottom and you watch one number grow up — flat pattern → sponge → faces → snowflake. (And peek at the flat carpet in the 5 column: it's the MrlyProd logo, one level deeper.)

357

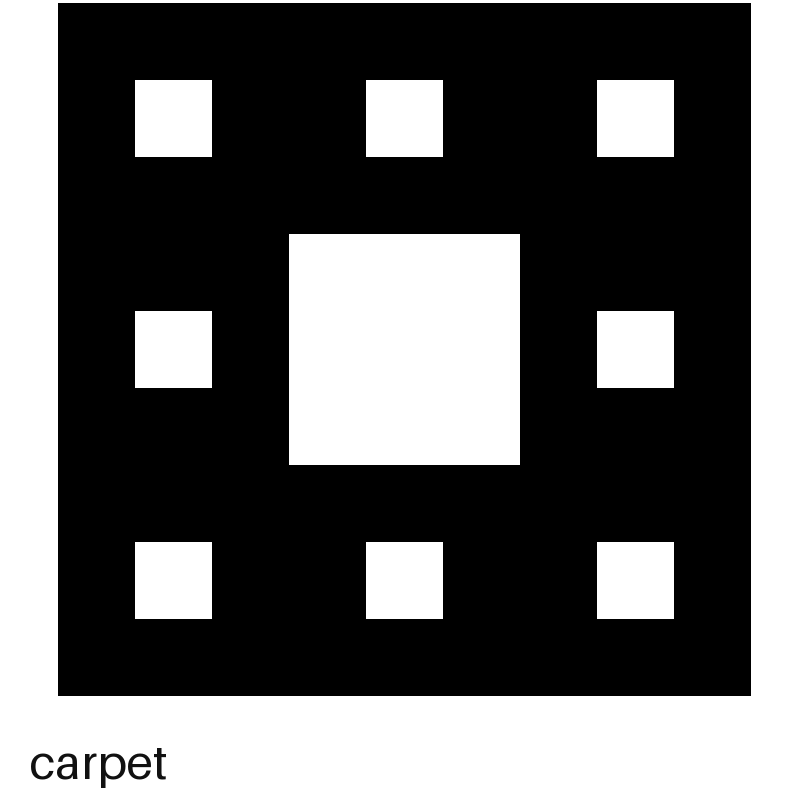

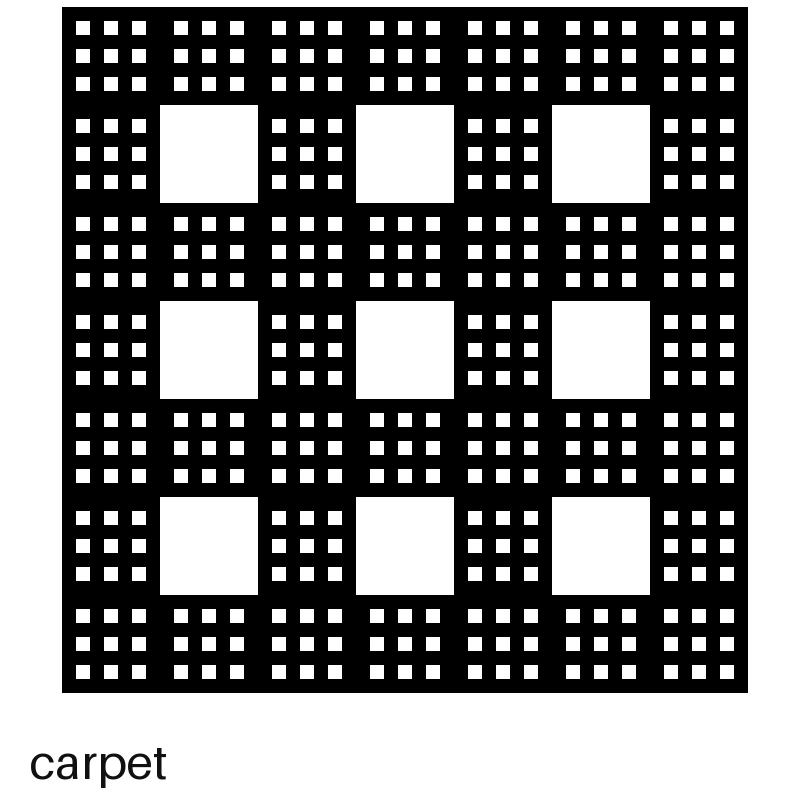

flatthe four families, number 3, flatthe four families, number 5, flatthe four families, number 7, flat

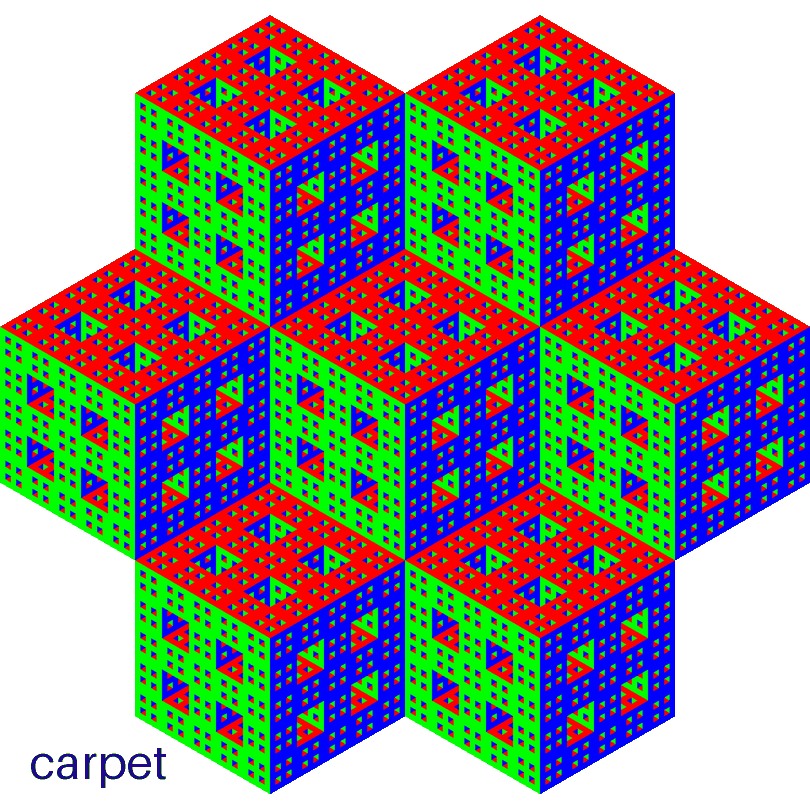

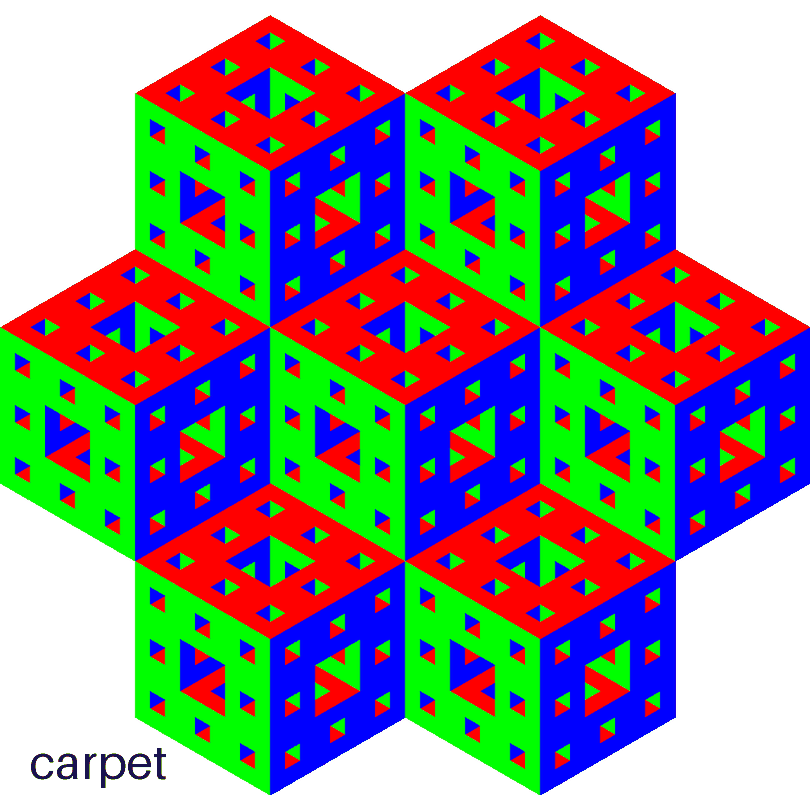

isothe four families, number 3, isothe four families, number 5, isothe four families, number 7, iso

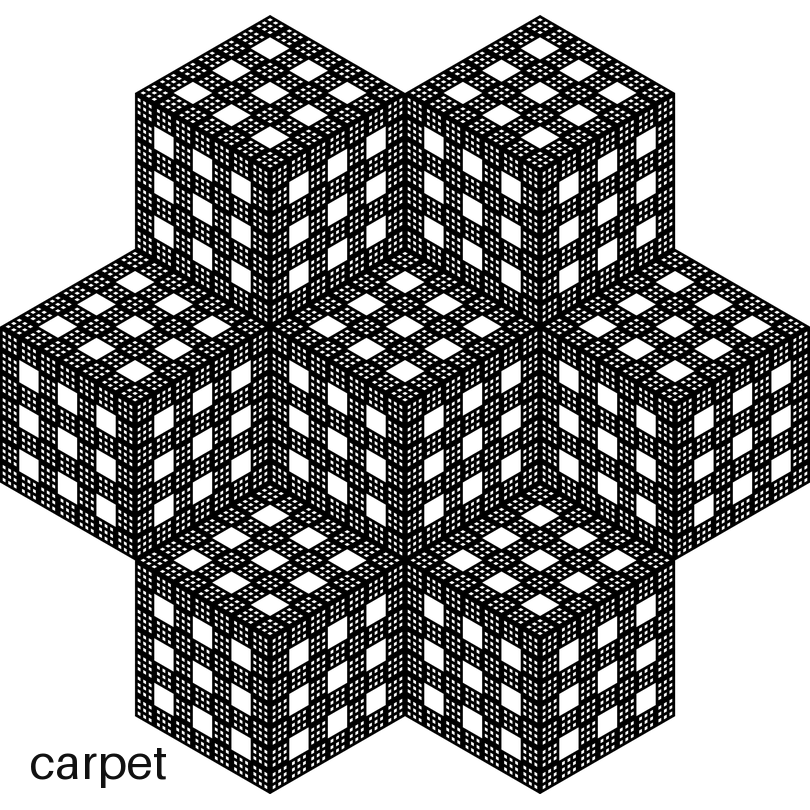

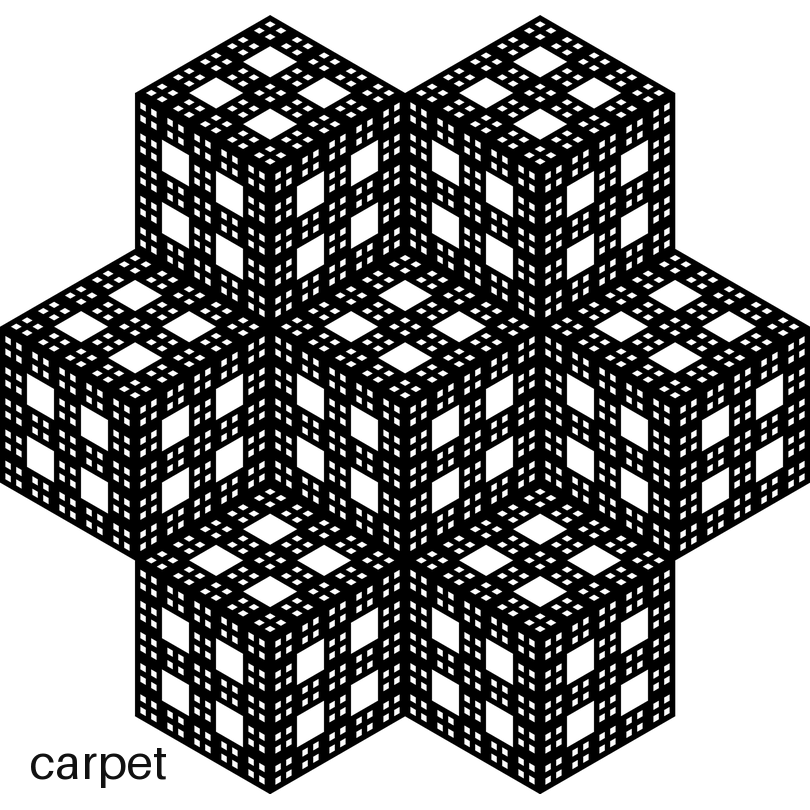

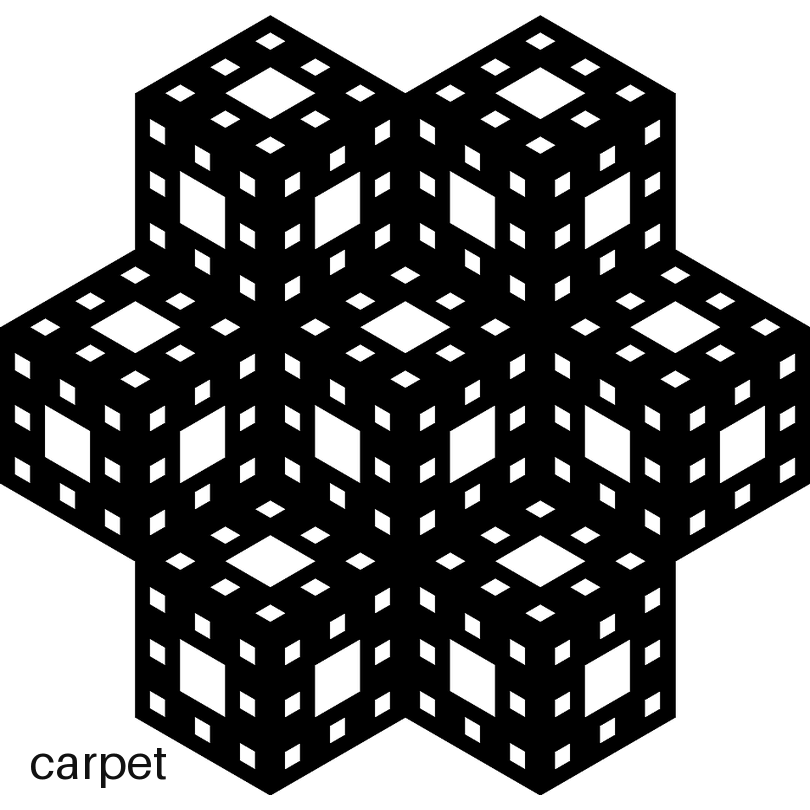

prothe four families, number 3, prothe four families, number 5, prothe four families, number 7, pro

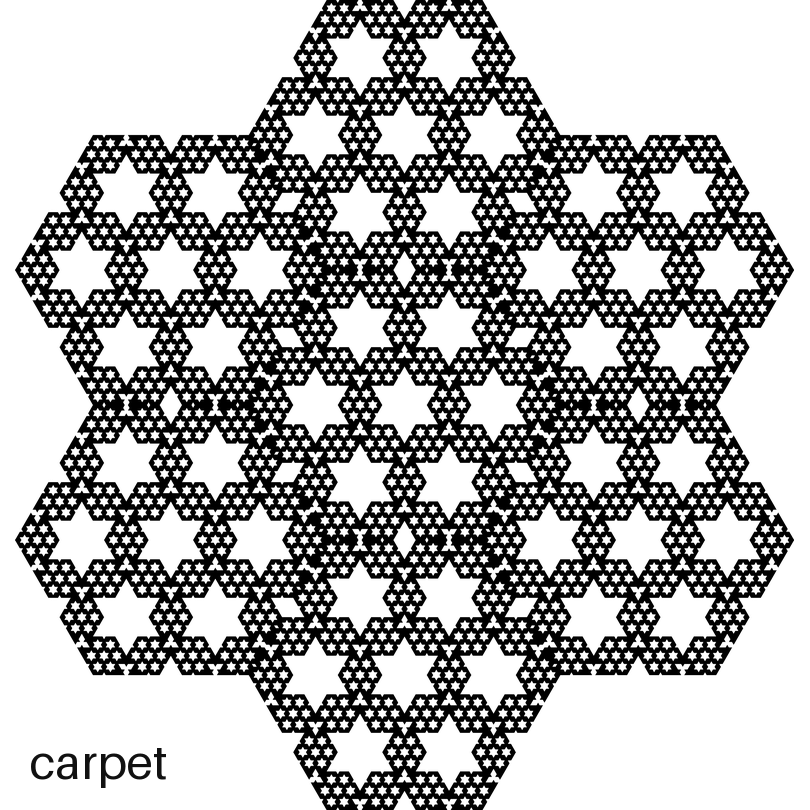

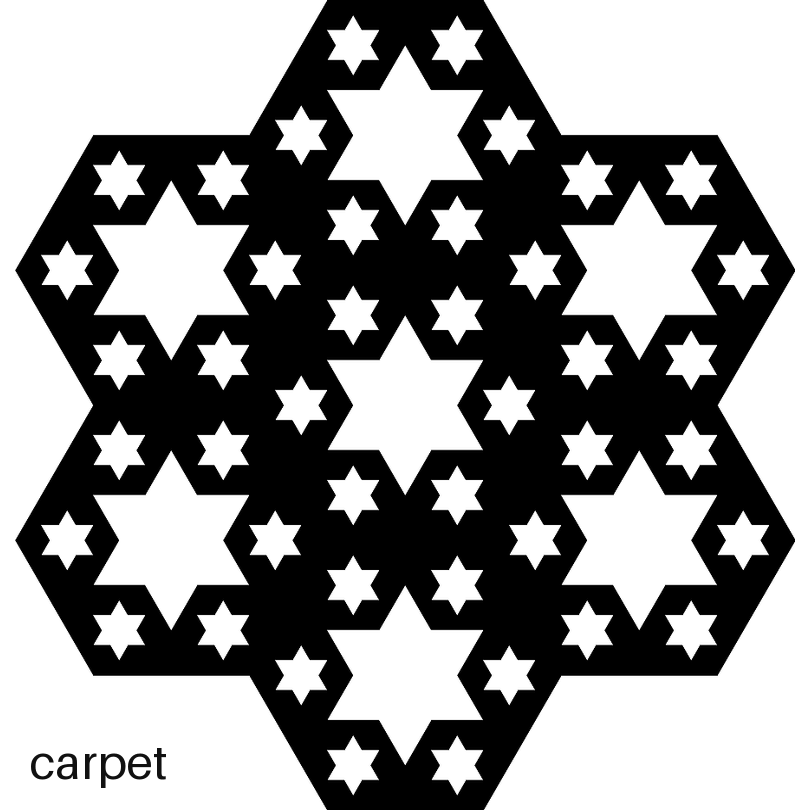

cutthe four families, number 3, cutthe four families, number 5, cutthe four families, number 7, cut

Run uv run site/blog/generalized-menger-sponge-slice/showcase.py for the console, add all to draw every cell above, or cut 5 for just one.
